Produktinformationen "Teltonika TRB500 - Wireless Router - WWAN DNP3, 1GbE"
Produktbeschreibung

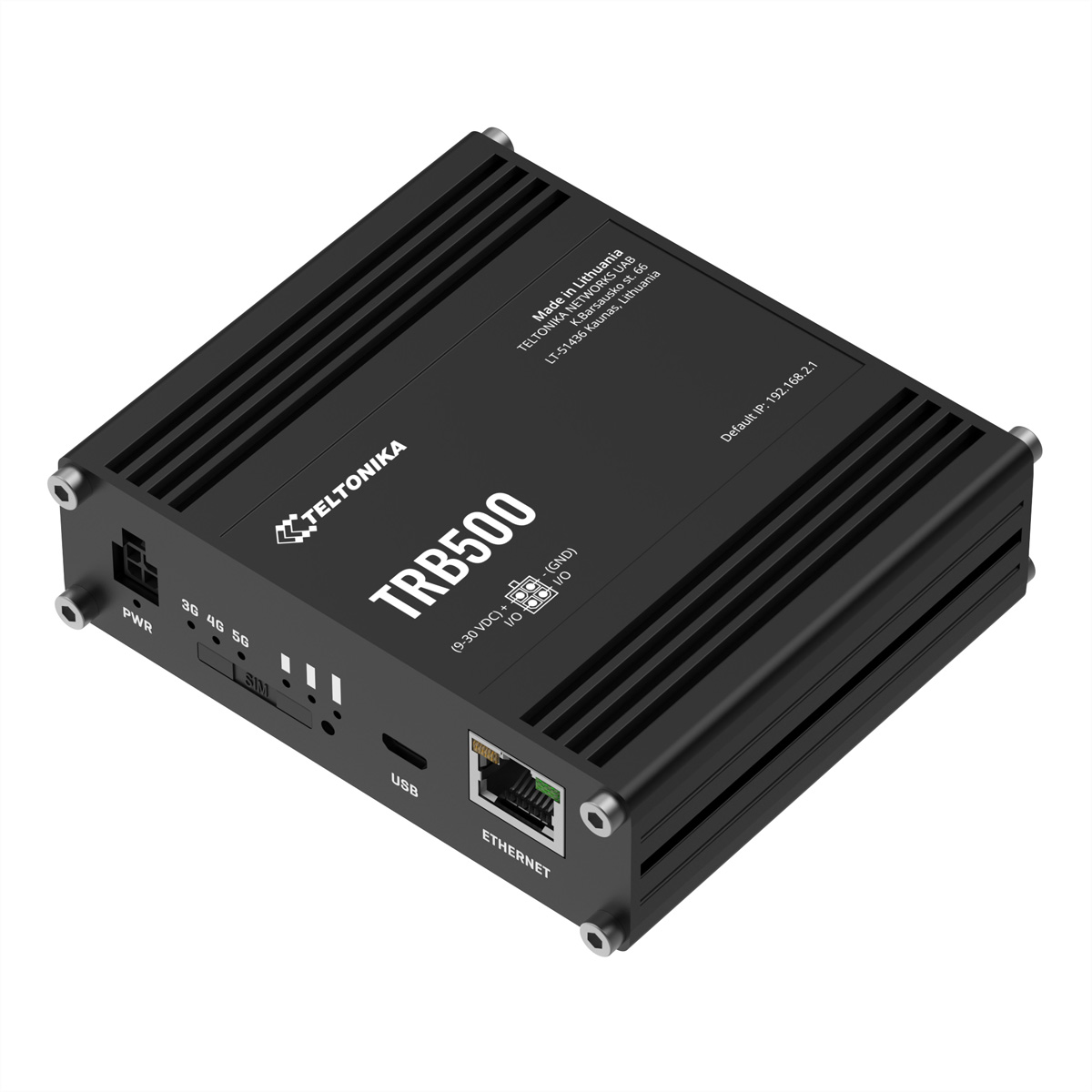

TRB500 Gateway
The TRB500 gateway is a compact-sized and energy-efficient industrial gateway with a Gigabit Ethernet interface and two configurable I/Os, allowing high-level customization and implementation of a multitude of scenarios.
// This device enables 5G network speeds with ultra-low latency for mission-critical infrastructures and high data throughput, ensured by 4 external antennas that allow the use of 4x4 MIMO.
// TRB500 comes with the RutOS operating system, which provides advanced security features and compatibility with our Remote Management System (RMS) for optimized remote management and monitoring capabilities of large fleets of devices.
|
MOBILE |
|
|
Mobile module |
5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL |
|
Status |
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID. |
|
SMS/Call |
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities |
|
USSD |
Supports sending and reading Unstructured Supplementary Service Data messages |
|
Black/White list |
Operator black/white list |
|
Band management |
Band lock, Used band status display |
|
APN |
Auto APN |
|
Bridge |
Direct connection (bridge) between mobile ISP and device on LAN |
|
Passthrough |
Gateway assigns its mobile WAN IP address to another device on LAN |
|
ETHERNET |
|
|
LAN |
1 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
|
NETWORK |
|
|
Network protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL) |
|
Routing |
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
|
Connection monitoring |
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
|
Firewall |
Port forwards, traffic rules, custom rules |
|
DHCP |
Static and dynamic IP allocation |
|
Supported >25 service providers, others can be configured manually |
|
|
SSHFS |
Possibility to mount remote file system via SSH protocol |
|
SECURITY |
|
|
Authentication |
Pre-shared key, digital certificates, X.509 certificates |
|
Firewall |
Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T |
|
Attack prevention |
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
|
VLAN |
|
USB: 1 x Micro-USB Type B
1 x DI/DO
1 x DI
Antenne: 4 x SMA
1 x Netzwerkkabel
