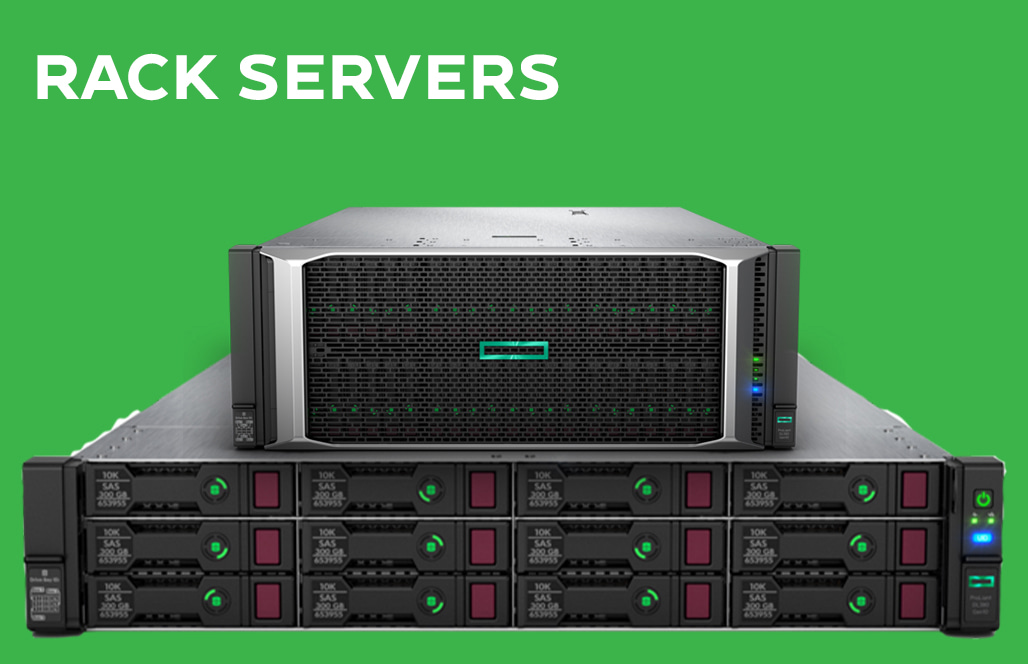

Rack Servers: Scalable and High-Performance Power for Professional IT Infrastructures
Rack servers are the core of modern data centers and professional IT environments. They are specifically designed to be installed in standardized 19-inch server racks, offering maximum performance density, scalability, and efficiency in the smallest possible space. Whether for demanding high-end applications, the virtualization of multiple systems, running extensive databases, or as a central component of your cloud infrastructure – rack servers are the optimal solution for businesses needing a growing and highly available IT landscape. The use of server racks facilitates technical structuring, cable management, and cooling, ensuring order and reliability in your IT infrastructure.
Configure Your Rack Server at etree: At etree, you can easily and independently configure the right rack server for your business online. With our CTO (Configure-to-Order) models, you can configure your server freely according to your wishes. Our trained experts are also happy to assist you, answer all your important questions, and provide non-binding advice on your ideal rack server.
What is a Rack Server and How Does It Work?
A rack server is a computer whose chassis is standardized for mounting in a server rack. Unlike freestanding tower servers, rack servers are horizontally slid into the rack and secured with screws. This design allows for an extremely high density of computing power on a minimal footprint. The height of a rack server is measured in rack units (U or RU), where one U is 1.75 inches (44.45 mm). Common sizes are 1U, 2U, and 4U, with larger servers offering more space for expansions like memory, hard drives, or graphics cards.
Its function depends on its role: it can act as a web server, database server, virtualization host, storage server, or application server. In any case, it is connected to the network via high-speed network cables and powered by redundant power supplies to remain operational even if one power source fails. Once the server is turned on, the operating system (e.g., a server OS or a hypervisor) is loaded, and users can interact with it via remote consoles or other interfaces.
The Decisive Advantages of a Rack Server
- Compact & Space-Saving: The standardized design allows for very high packing density. Many servers can be housed in a single rack, making efficient use of space in data centers or server rooms.
- Excellent Scalability and Easy Expandability: The infrastructure can be easily expanded by simply adding more servers to free rack slots. Internal components like CPUs, memory, or hard drives can also be easily upgraded.
- Centralized Management & Organization: A server rack significantly simplifies administration. Cabling, power supply, and cooling can be centrally and neatly organized, which facilitates maintenance and reduces sources of error.
- High Performance for Demanding Workloads: Rack servers are designed for 24/7 continuous operation and are equipped with powerful processors, ample memory, and fast storage systems to handle a wide range of virtualized, containerized, or bare-metal workloads.
- Efficient Cooling at High Density: Although rack servers generate a lot of heat, server racks and server rooms are designed for optimized airflow and air conditioning to ensure a stable operating temperature.
- Freely Configurable: Many models are available as "Configure-to-Order" (CTO), allowing for precise customization of computing power, storage capacity, and network resources to your company's specific requirements.
The Server Rack: The Home for Your IT Infrastructure
A 19-inch server rack is a frame or cabinet in which you can house all your network components in a standardized way. The center-to-center distance of the mounting rails is 48.26 centimeters, which converts to 19 inches – a worldwide industry standard that ensures compatibility between equipment and racks from different manufacturers.
Open Rack vs. Closed Server Cabinet
- Advantages of an Open Rack: Quick access from all sides, optimal passive ventilation (no heat buildup), often more cost-effective and mobile due to casters. Ideal for well-air-conditioned and access-controlled rooms.
- Advantages of a Closed Cabinet: Optimal protection against unauthorized access (lockable), dust protection, better sound insulation, and often even more structured cable management.
Important Dimensions (Width, Depth, Height)
The width is standard at 19 inches between the mounting rails. The depth varies but is often between 600mm and 1200mm to accommodate different server models. The height is measured in rack units (U or RU). For example, a 42U rack offers space for 42 devices of 1U height each. When choosing the height, you should always plan for some free space for future expansions.
Key Components of a Rack Server in Detail
A rack server contains components similar to a PC, but they are optimized for performance, reliability, and longevity in continuous operation.
Processor (CPU) – The Brain of the Server
To assess the required performance, you need to know your workload. The clock speed (GHz) affects how quickly individual operations are executed. The number of cores and threads determines how many tasks can be processed simultaneously, which is particularly important for virtualization or managing large databases. Specialized server processors are used, which are optimized for reliability and performance in continuous operation.
Storage Solutions and Drive Bays
The choice between fast SSDs (Solid State Drives) for operating systems and applications, and high-capacity HDDs (Hard Disk Drives) for large data volumes, is crucial for performance. Multiple drive bays allow for future expansion. Hot-swappable bays permit drive replacement without shutting down the server. Furthermore, RAID configurations (e.g., RAID 1, 5, 6, 10) provide fault tolerance and/or increased performance.
PCIe Slots for Expansions
PCIe (Peripheral Component Interconnect Express) slots are essential for a server's expandability. They allow the connection of high-speed components such as graphics cards (GPUs), NVMe storage devices, RAID controllers, and network cards. The generation (e.g., PCIe 4.0, 5.0) determines the maximum speed per lane.
Memory (RAM) – Stability through Error Correction
Rack servers typically use ECC (Error-Correcting Code) RAM. This memory can independently detect and correct small data errors, which is essential for system stability and data integrity, especially during long calculations or in databases.
How to Choose the Right Rack Server for Your Needs? A Checklist:
1. Determine Requirements
- Workload: Understand the type and intensity of applications and processes the server will handle (e.g., file storage, databases, virtualization, specific industry software).
- Storage Needs: Determine how much storage space you need now and in the near future (HDD for capacity, SSD for speed).
- Scalability: Consider future growth and the potential need for more RAM, storage, and expansion cards.
2. Evaluate Performance
- Processor (CPU): Choose a server with the right CPU configuration (clock speed, number of cores) for your processing needs. Single or dual socket?
- Memory (RAM): Opt for a sufficient amount of RAM that meets your application requirements to avoid bottlenecks. Plan for free slots for future upgrades.
3. Consider Budget and Physical Constraints
- Initial and Operating Costs: Besides the purchase price, consider ongoing costs for power, cooling, and potential licenses or maintenance contracts.
- Server Room: Is a suitable room with adequate cooling, power supply, and space in the server rack available?
4. Check Manufacturer Support
- Warranty: Look at the warranty terms offered (e.g., next-business-day on-site service).
- Availability of Technical Support: There should be reliable customer service and technical hotlines.
