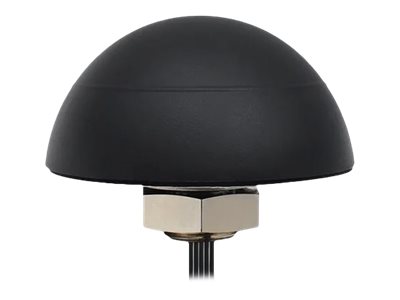

Teltonika Antenne - Navigation, Mobiltelefon, Wi-Fi - 3 dBi (für 698 - 960 MHz)
Sie möchten uns diesen Artikel anbieten? Dann füllen Sie bitte das Formular aus.
Produktinformationen "Teltonika Antenne - Navigation, Mobiltelefon, Wi-Fi - 3 dBi (für 698 - 960 MHz)"
|
GNSS Antenna | |
|---|---|
|
Frequency Range: |
1575.42-1610 MHz |
|
Polarization |
RHCP |
|
Impedance |
50 O |
|
LNA Gain |
28±2 dB |
|
LNA Noise Figure |
< 1.5 dB |
|
Supply Voltage |
3-5 VDC |
|
Current Consumption |
< 15 mA |
|
LNA V.S.W.R |
<2.0 |
|
Connector |
SMA Male |
|
LTE MIMO Antenna | |
|---|---|
|
Frequency Range: |
698-960/1710-2690 MHz |
|
Polarization |
Linear |
|
Gain |
3 dBi |
|
V.S.W.R: |
<3.0 |
|
Impedance: |
50 O |
|
Connector: |
2x SMA Male |
|
WiFi MIMO Antenna | |
|---|---|
|
Frequency Range: |
2400-2483.5/4900-5825 MHz |
|
Polarization |
Linear |
|
Gain |
2 dBi |
|
V.S.W.R: |
<2.5 |
|
Impedance: |
50 O |
|
Connector: |
2x RP SMA Male |
|
Mechanical/Environmental | |
|---|---|
|
Mounting Method: |
Screw |
|
Radome Ingress Protection rating: |
IP67 |
|
Radome Material: |
ABS |
|
Weight: |
<550g |
|
Housing Dimensions: |
Ø 110x55 mm |
|
Cable: |
5x RG174, 3000 mm |
|
RoHS Compliant: |
|
